| Place of Origin: | Henan China |
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 5-11 |

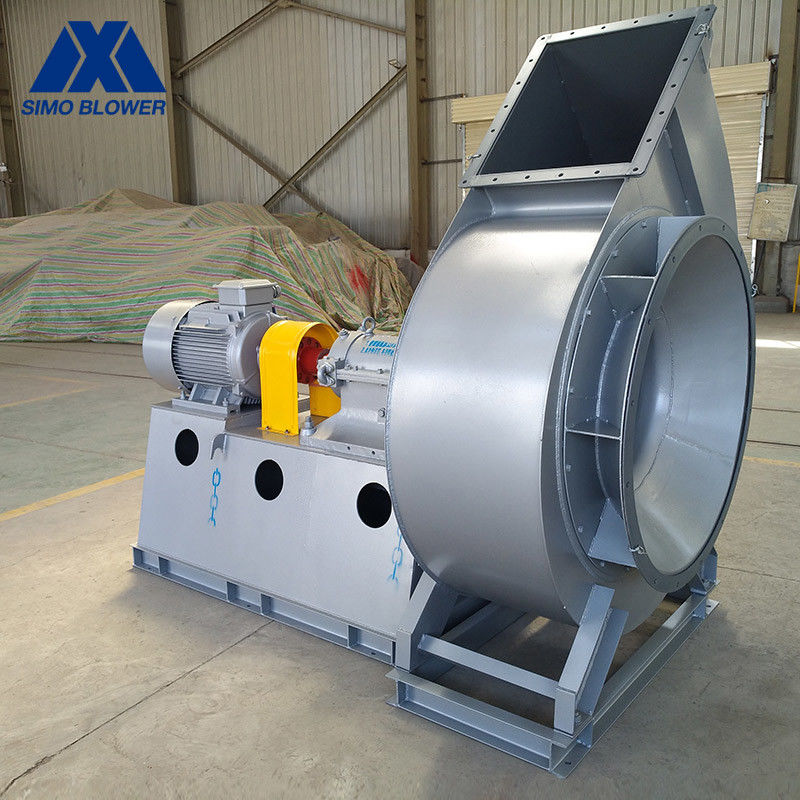

High Volume Air Supply Stainless Steel Flue Gas Centrifugal Blower Fan
Introduction
The High Volume Air Supply Stainless Steel Flue Gas Centrifugal Blower Fan is a high efficiency and energy saving product developed by our company, which is used for ventilation and exhaust system of smelting, chemical, medicine and dust removal production lines.
In the coal-fired boiler system, the ventilation and induce draft systems of various boilers with evaporation capacity of 20 tons/hour to 800 tons/hour can be configured.It can output higher outlet pressure and provide more gas flow at the same time, low noise. Stable operation at higher media temperatures.The fan speed can be flexibly set by matching different belt pulley diameters to make the fan run at the highest efficiency point and reduce energy waste. Motor slide guide can be provided for convenient belt tensioning to reduce energy loss caused by belt slack.
Technical data
| series | model |
Centrifugal Blower Rotation Speed |
Centrifugal Blower Total Pressure |
Centrifugal Blower Air Capacity |
Power (kW) |
|---|---|---|---|---|---|
|
5-11 Centrifugal Blower Fan |
4D | 2900 | 990～1873 | 2750～5750 | 3～4 |
| 5D | 2620～2900 | 1265～2265 | 4840～9870 | 5.5～7.5 | |
| 6D | 2620～2850 | 1824～3148 | 8370～16760 | 15～18.5 | |
| 8D | 1820～1980 | 1726～2991 | 13780～27600 | 22～30 | |
| 9D | 1740～1820 | 2000～3197 | 18780～36140 | 37 | |
| 12D | 1450 | 3609～2471 | 37100～68250 | 75 | |
| 12.4D | 1450 | 3903～2638 | 40940～75330 | 90 |
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans ?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service ?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications ?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
