| Place of Origin: | Henan China |
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-06 |

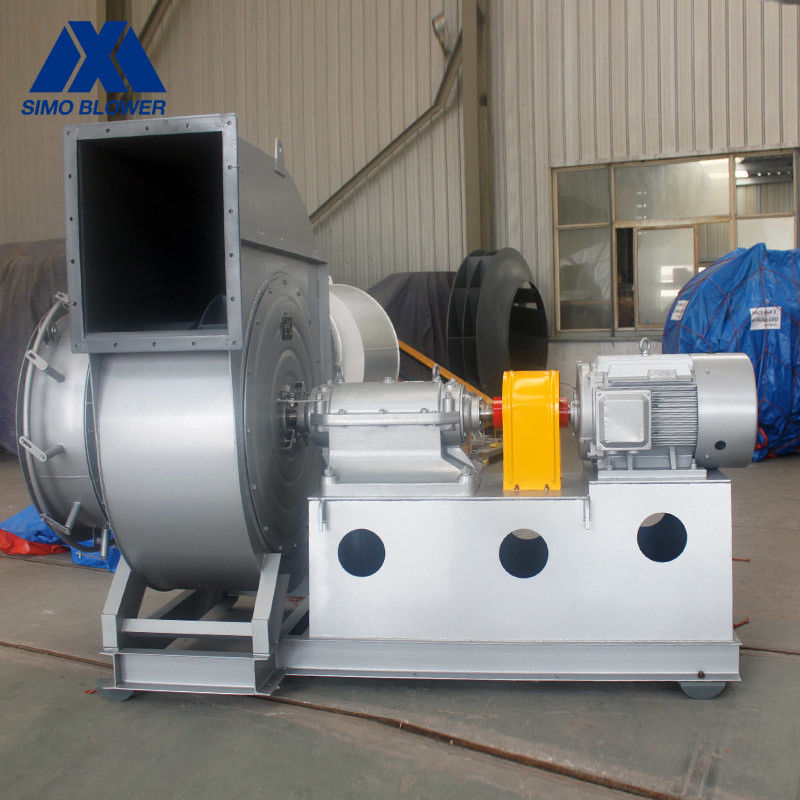

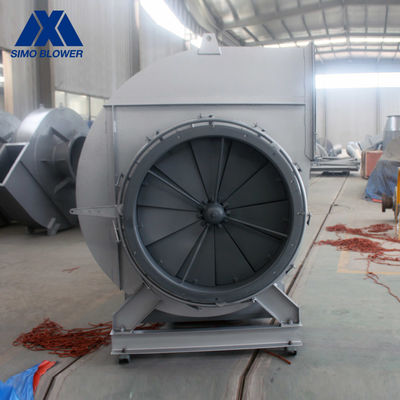

Forward Coupling Driving Air Purification Stainless Steel Blower Fan
Introduction Of Centrifugal Fan
1. It can output higher outlet pressure and provide more gas flow at the same time, low noise.
2. The fan speed can be flexibly set by matching different belt pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.
3. Motor slide guide can be provided for convenient belt tensioning to reduce energy loss caused by belt slack.
4. The bearing housing is reserved for the installation position of temperature and vibration sensors, which can facilitate the installation of fan operation monitoring device.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 6-06 | 8D | 1450 | 1859～2745 | 11000～26400 | 15 ~ 22 |
| 9D | 1450 | 2353～3474 | 15700～37500 | 30 ~ 45 | |
| 10D | 1450 | 2905～4289 | 21500～51500 | 45 ~ 75 | |
| 11D | 960 ~ 1450 | 1541～5190 | 22700～68500 | 22 ~ 110 | |
| 12D | 960 ~ 1450 | 1834～6176 | 24600～89000 | 37 ~ 160 | |
| 13D | 960 ~ 1450 | 2152～7248 | 31200～113000 | 55 ~ 250 | |
| 14D | 960 ~ 1450 | 2496～8406 | 39000～141000 | 75 ~ 400 | |
| 15D | 730 ~ 1450 | 1657～9650 | 36600～172000 | 45 ~ 500 | |
| 16D | 730 ~ 1450 | 1885～10980 | 44300～211000 | 75 ~ 710 | |
| 17D | 730 ~ 960 | 2128～5433 | 53200～168000 | 90 ~ 280 | |
| 18D | 730 ~ 960 | 2386～6091 | 63100～199000 | 110 ~ 355 | |
| 19D | 730 ~ 960 | 2658～6787 | 74200～234000 | 160 ~ 500 | |
| 20D | 730 ~ 960 | 2946～7520 | 86700～273000 | 200 ~ 630 | |
| 21D | 580 ~ 960 | 2050～8290 | 79500～316000 | 200 ~ 800 | |
| 22D | 580 ~ 960 | 2250～9099 | 92200～363000 | 220 ~ 1000 | |
| 23.5D | 580 ~ 960 | 2567～10380 | 112000～443000 | 220 ~ 1400 | |
| 25D | 580 ~ 730 | 6794～6464 | 134000～406000 | 355 ~ 800 | |
| 26.5D | 480 ~ 730 | 2236～7633 | 132000～483000 | 220 ~ 1120 | |
| 28D | 480 ~ 730 | 2496～8522 | 156000～569000 | 315 ~ 1400 | |
| 29.5D | 480 ~ 730 | 2771 ~ 9460 | 183000～667000 | 400 ~ 2000 |
Product Features
1. Use liquid lubricating oil. It is not necessary to open the bearing housing to replace and fill the lubricating oil. The bearing housing is provided with an observation window for easy observation of the quality and stock of the lubricating oil.
2. The bearing housing uses labyrinth mechanical seal, unique anti-leakage design inside, vent hole at the top, and sealing grease at the joint, completely eliminating the possibility of oil leakage in the bearing hosing.
3. After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.
4. The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.
5. After running test and vibration value detection, the operation is reliable.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
