| Place of Origin: | CHINA |
| Brand Name: | SIMO BLOWER |
| Certification: | CE |
| Model Number: | 4-14 |
The 4-14 series centrifugal fan is suitable for indoor ventilation in general factories and large buildings.
It can be used to input gas as well as to output gas.
The gas delivered by the 4-14 series fan should be no more than 80 °C air and other gases that are not self-igniting and are not harmful to the human body and are not corrosive to steel materials. No viscous substances are allowed in the gas, and the dust and hard particles contained in the gas are not more than 150 mg/m3.
It has large flow and low noise, more use in building ventilation, ventilation and drying of materials, air purification and industrial waste gas treatment, industrial dust collectors, air purification and discharge in hazardous working environments(Paper production line, electrolytic aluminum production line, textile factory...). Blasting of boilers and brick kilns, transport of various gases, transport of granules/powders/debris/fiber materials, etc.
| Series no. | 4-14 series | Feature selection | |||||
| Normal | anti-corrosion | wear-resisting | High temperature | anti-explosion | Remarks | ||
| Performance | Impeller diameter | 280-1600mm | |||||
| Rotation speed | ≤3000rpm | ||||||
| Pressure range | 720-6531Pa | ||||||
| Flow range | 1966-194495㎥/h | ||||||
| Structure | Blade type | Backward, Straight, Aerofoil type | |||||
| Impeller support | SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type | ||||||
| Lubrication method | Oil bath lubrication, grease lubrication, lubrication oil station | Can be specified | |||||
| Cooling method | Air cooling, Water cooling, Oil cooling | Can be specified | |||||
| Driven mode | Direct driven, Coupling driven, Belt driven | Can be specified | |||||
| Gas composition | Gas temperature | Normal | Customer request | Customer request | ≥250℃ | Customer request | |
| gas characteristic | Clean gas | Corrosive gas | Particulate dust | High temperature gas | Flammable gas, explosive gas | ||
| System configuration | Motor brand | Chinese famous brand, ABB, Siemens, WEG etc | Can be specified | ||||
| Impeller | High quality carbon steel | FRP, Stainless steel, Rubber Lining | Wear-resistant layer or wear-resistant liner, ceramic patch | High temperature high quality alloy steel | FRP, Aluminum alloy | Can be specified | |
| Air inlet cone | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |
| Casing | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |
| Air damper | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |
| Main shaft | High strength carbon steel, Alloy structural steel | Can be specified | |||||
| Bearing | ZWZ, SKF, FAG, NSK | Can be specified | |||||
| Bearing housing | Cast iron | ||||||
| Foundation bolts | GB799-1988 | ||||||
| Option parts | System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument. | ||||||
Thanks to its CE certification, you can be sure that this product meets the highest quality standards and safety regulations. The minimum order quantity for this product is 1, and the price ranges from $500 to $1000, depending on your specific needs and requirements.

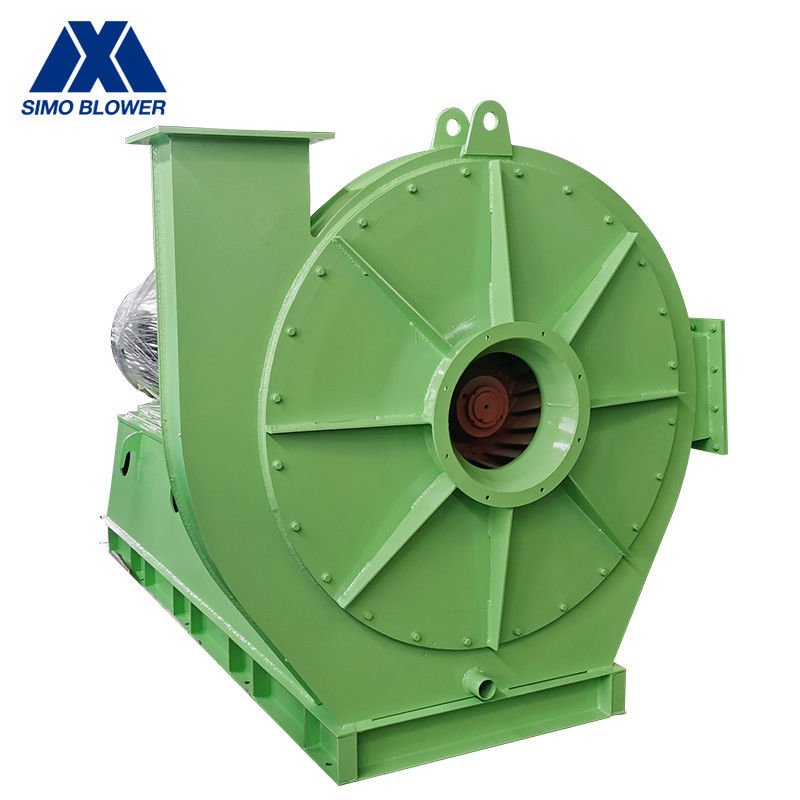

The SIMO BLOWER High Temperature Centrifugal Fan is a single inlet, overhang type system that features a dynamic balanced impeller. With impeller sizes ranging from 540 to 3211 mm, this product is capable of delivering high volumes of air at high pressures, making it ideal for a variety of ventilation applications.
The electric current type for this product is AC, which means it is compatible with a wide range of power sources. Whether you need to install this fan in an industrial plant, a commercial building, or a residential area, you can be sure that it will provide reliable and efficient performance for years to come.
Some of the most common applications for the SIMO BLOWER High Temperature Centrifugal Fan include high temperature ventilation systems in industrial processes, power plants, metallurgy, chemical industry, and other environments where high temperatures and harsh conditions are the norm. With its powerful performance and durable design, this HT Centrifugal Ventilator is capable of handling even the most demanding ventilation tasks, ensuring that your facility remains safe, comfortable, and productive at all times.
When you purchase the SIMO BLOWER High Temperature Centrifugal Fan, you can enjoy a 1-year warranty that covers any defects in materials or workmanship. This gives you the peace of mind you need to invest in a high-quality ventilation solution that will provide reliable and efficient performance for years to come.
With a spindle speed range of 1420~2825r/min, SIMO BLOWER is a manufacturer of High Temperature Ventilation Blower and offers customized solutions to meet your unique requirements.
The High Temperature Centrifugal Fan product is designed to operate in high temperature environments up to 500°C. Our technical support team is available to assist with any questions regarding installation, operation, and maintenance of the product. In addition, we offer the following services:
Our goal is to ensure that our customers experience reliable and efficient operation of their High Temperature Centrifugal Fan. Please do not hesitate to contact us for any technical support or service needs.
Product Packaging:
Shipping:
Q: What is the brand name of this centrifugal fan?
A: The brand name of this centrifugal fan is SIMO BLOWER.
Q: What is the model number of this centrifugal fan?
A: The model number of this centrifugal fan is 4-14.
Q: Where is this centrifugal fan manufactured?
A: This centrifugal fan is manufactured in China.
Q: Does this centrifugal fan come with any certification?
A: Yes, this centrifugal fan comes with CE certification.
Q: What is the minimum order quantity for this centrifugal fan?
A: The minimum order quantity for this centrifugal fan is 1.
Q: What is the price range for this centrifugal fan?
A: The price range for this centrifugal fan is $500-1000.
