| Place of Origin: | CHINA |
| Brand Name: | SIMO BLOWER |
| Certification: | CE, ISO9001:2008 |
| Model Number: | 6-29 |
The 6-11 series have the characteristics of high efficiency, flat performance curve, wear resistance, and work stability.
It has excellent performance and can output high pressure.
It can be used to transport normal temperature or high temperature non-flammable gases, particles, powder, debris, fibrous materials etc.
The fans are commonly used in large-scale industrial systems such as large dust removal systems, industrial desulfurization and denitrification, large industrial boiler systems, large industrial rotary kilns and calcining kiln systems, and mineral powder sintering (sintering machines) and so on.
Product features:
1. It can output higher outlet pressure and can work in high temperature medium, suitable for any need to transport high pressure & high temperature gas industrial occasions.
2. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.
3. For the material of impeller and main spindle, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main spindle at high temperature still maintain reliable strength.
4. For dusty gas, we can meet all kinds of working conditions from small amount of dust to large amount of dust. After special treatment, the hardness of blade surface can reach HRC60~70, which can extend the life of the impeller by more than 3 times.
5. The moderate bonding between the components is tight, and the sealing performance is good, ensuring that the output pressure will not be reduced.
6. After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.
7. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.
8. The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.
9. Test assembly after production is completed to ensure that there is no interference between the components.
10. Provide on-site arrangement and guidance services.
Performance:

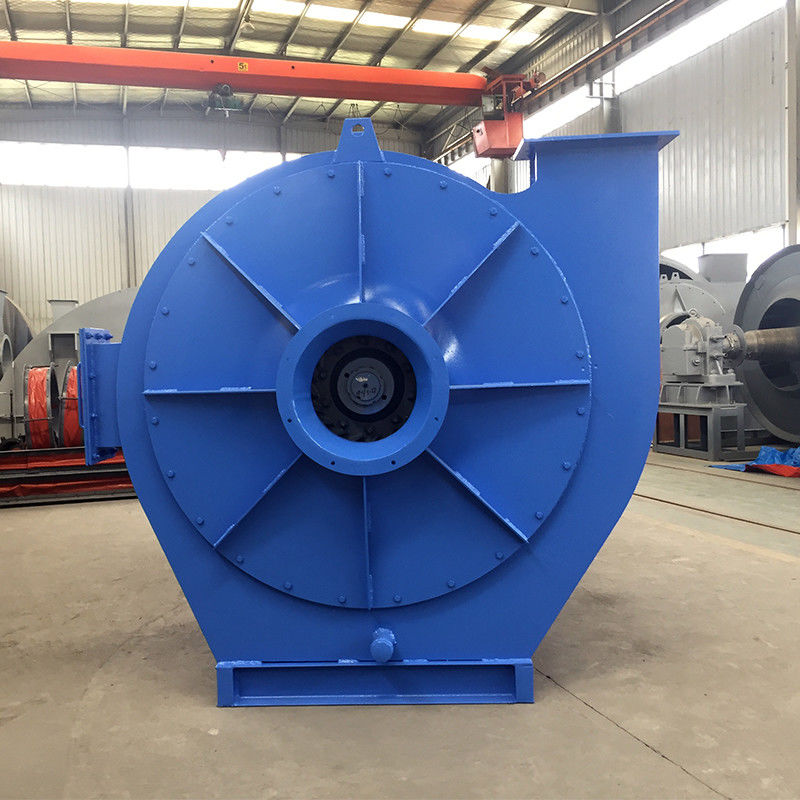

| High Pressure Centrifugal Fan With High Temperature High-Strength Alloy Steel Main Spindle | |||
| Performance | Pressure range | 5435~14461 | Pa |
| Air flow range | 22889~121114 | m3/h | |
| Impeller diameter | 1500~3600 | mm | |
| Speed | 1450 | rpm | |
| Material | Suction blower fan case | Q235, Q345, stainless steel | Design as special |
| Suction blower fan shaft | 45# steel, Q304, SS304,SS316L | ||
| Suction blower fan impeller | Q304, 12Cr1Mov,15Crmov, 15MnV | ||
| Medium | 10---140℃ | Dustiness<90 g/m3 | incombustible |
| Motor | Siemens, ABB, WN, SIMO, LA | IP 54,55,56 | 3 phase |
| Optional components |
System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank. |
||
Support and Services:
Our Centrifugal Ventilation Fans are designed to provide reliable and efficient ventilation for a variety of applications. We offer a range of technical support and services to ensure that our customers get the most out of their ventilation systems:
- Product selection assistance to help customers choose the right fan for their specific needs
- Installation guidance to ensure proper installation and optimal performance
- Maintenance and repair services to keep fans running smoothly and efficiently
- Technical troubleshooting and support to address any issues that may arise
Our team of experienced technicians are dedicated to providing exceptional customer service and support. Contact us to learn more about our Centrifugal Ventilation Fans and the technical support and services we offer.
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory with a history of over 65 years. Our factory integratesR&D, production, sales and after-sales, and produces precise and new products that are marketable.
Q: How to select suitable products according to the on-site operation environment?
A: The selection of fans should be carried out by professionals. It is necessary to estimate the resistance of the system as accurately as possible, otherwise improper selection will lead to poor actual use effect of the fan.
Q: What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow rate(m3/h), Total pressure(Pa) or Static pressure(Pa),Inlet temperature(*C), Voltage and frequency on the working site.
Q: How long is your delivery time?
A: 15-35workdays, depending on the model of the fan.
Q: What's your warranty?
A: 12 months after arrival of the goods on site.
