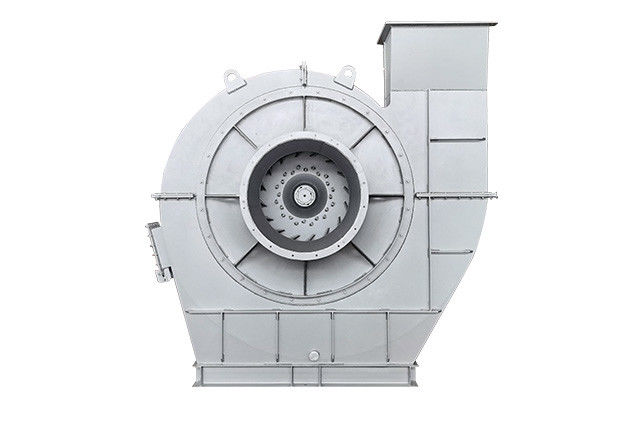

Carbon High Pressure Blower Industrial Fan For Metallurgy

Product Description:

The 9-19 series centrifugal fan can output high gas pressure, suitable for conveying normal or high temperature clean gas/combustible gas/corrosive gas/mixed with a few impurities, light particles/debris/short fiber materials.

The most commonly used for forced ventilation, rapid drying, rapid cooling and heat dissipation, cement production line chiller cooling, clinker cooler, circulating fluidized bed system, air purification and industrial waste gas treatment, flue gas desulfurization industrial boilers or incinerators forced draft/ induced draft/ primary/ secondary air, ventilation of large mill system, industrial waste heat recovery device, blasting of smelting furnace and casting furnace, combustion of blast furnace, coal injection of blast furnace, pressurized transportation of gas, Pressurization or decompression sealing of industrial equipment.

The 9-08/9-10 series fan is a series of fans that are used in a large number of industrial fields.

Features:

1. It can output very high pressure and can work at higher medium temperature, suitable for any industrial occasion where high pressure & high temperature gas needs to be delivered.

2. In the case of using the common base , the installation is very simple and basically does not require the support of professional technicians.

3. The bearing box is reserved with the temperature and vibration sensor installation position, which can conveniently install the fan operation monitoring device.

4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

5. Customized design according to customer performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.

6. The parts are closely matched and have good sealing performance to ensure the output pressure will not be reduced.

7. The impeller is calibrated by high standards for dynamic balance to ensure stable operation of the fan.

8. Running test and vibration value detection after the production is completed, the fan operation is reliable.

9. There are a variety of part options to choose from.

1. It can output higher outlet pressure and can work in high temperature medium, suitable for any need to transport high pressure & high temperature gas industrial occasions.

2. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.

3. For the material of impeller and main spindle, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main spindle at high temperature still maintain reliable strength.

4. For dusty gas, we can meet all kinds of working conditions from small amount of dust to large amount of dust. After special treatment, the hardness of blade surface can reach HRC60~70, which can extend the life of the impeller by more than 3 times.

5. The moderate bonding between the components is tight, and the sealing performance is good, ensuring that the output pressure will not be reduced.

6. After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.

7. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.

8. The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.

9. Test assembly after production is completed to ensure that there is no interference between the components.

10. Provide on-site arrangement and guidance services.
