| Place of Origin: | CHINA |
| Brand Name: | SIMO BLOWER |
| Certification: | CE |
| Model Number: | 9-03 |

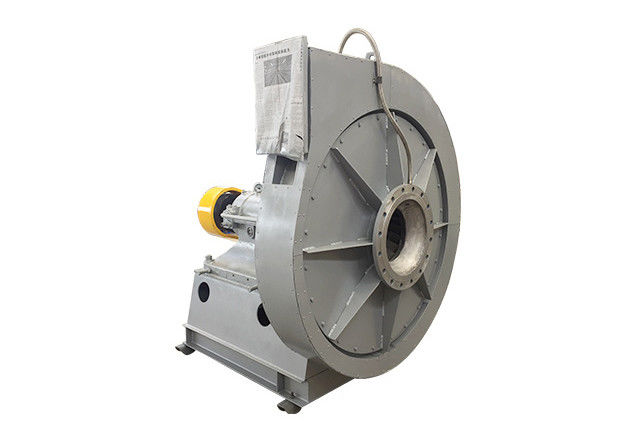

9-03 series fan-type iron furnace special high-pressure centrifugal fan, is suitable for IL/h, 2L/h, 3L/h, 3L/h, 7L/h melting rate of iron furnace blast performance requirements.
The fan can also be used as the blast for various furnace forging furnaces.
It is also suitable for conveying air and non-corrosive, non-self-igniting, non-viscous materials or light powder/debris/short fiber materials.
It is suitable for forced ventilation, forced cooling, blasting of smelting furnaces and foundry furnaces, pressurization or decompression sealing of industrial equipment.
1. It can output high pressure and is suitable for any industrial occasion where high pressure & normal temperature gas is required.
2. The energy transfer efficiency is high, the energy of the motor is directly applied to the impeller, and there is no energy consumption during the transfer.
3. The motor uses high-efficiency and energy-saving motors from China's leading motor manufacturers (and can also install branded motors required by users), with reliable quality and lower energy consumption.
4. It is made of high quality carbon steel, stainless steel or other metal materials are available upon request.
5. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
6.After the completion of production, after running test and vibration value detection, the operation is reliable.
| Series no. | 9-03 series | Feature selection | |||||||
|
|
Normal | anti-corrosion | wear-resisting | High temperature | anti-explosion | Remarks | |||
| Performance | Impeller diameter | 400-1800mm | |||||||
|
|
Rotation speed | ≤4000rpm | |||||||
|
|
Pressure range | 1581-10587Pa | |||||||
|
|
Flow range | 90.6-61297㎥/h | |||||||
| Structure | Blade type | Forward | |||||||
|
|
Impeller support | SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type | |||||||
|
|
Lubrication method | Oil bath lubrication, grease lubrication, lubrication oil station | Can be specified | ||||||
|
|
Cooling method | Air cooling, Water cooling, Oil cooling | Can be specified | ||||||
| Driven mode | Direct driven, Coupling driven, Belt driven | Can be specified | |||||||
| Gas composition | Gas temperature | Normal | Customer request | Customer request | ≥250℃ | Customer request | |||
|
|
gas characteristic | Clean gas | Corrosive gas | Particulate dust | High temperature gas | Flammable gas, explosive gas | |||
| System configuration | Motor brand | Chinese famous brand, ABB, Siemens, WEG etc | Can be specified | ||||||
|
|
Impeller | High quality carbon steel | FRP, Stainless steel, Rubber Lining | Wear-resistant layer or wear-resistant liner, ceramic patch | High temperature high quality alloy steel | FRP, Aluminum alloy | Can be specified | ||
|
|
Air inlet cone | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | ||
|
|
Casing | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | ||
|
|
Air damper | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | ||
|
|
Main shaft | High strength carbon steel, Alloy structural steel | Can be specified | ||||||
|
|
Bearing | ZWZ, SKF, FAG, NSK | Can be specified | ||||||
|
|
Bearing housing | Cast iron | |||||||
|
|
Foundation bolts | GB799-1988 | |||||||
| Option parts | System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument. | ||||||||
