| Place of Origin: | Henan China |
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-08 |

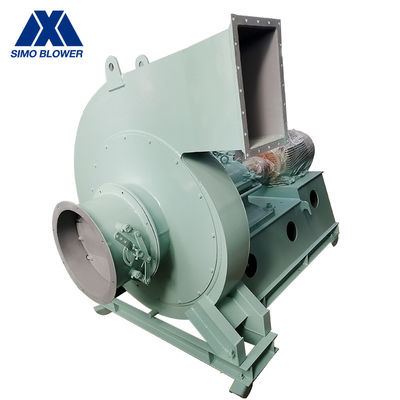

Single Inlet Forward Material Handling Blower Explosionproof
Introduction
The 9-08 series fan has a large flow rate and moderate pressure.
It’s suitable for conveying normal temperature or high temperature non-flammable gas (normal air, high temperature gas, corrosive gas, dusty gas), and conveying granule/powder/chip/fiber material.
Detail introduction
1. The fan can output very high pressure, suitable for any need to transport high pressure & normal temperature gas industrial occasions.
2. Each part has an installation number and can be successfully assembled under the guidance of the installation manual.
3. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 9-08 | 4D | 2900 | 2285～2452 | 3297～6594 | 5.5～7.5 |
| 4.5D | 2900 | 2893～3060 | 4695～9389 | 11～15 | |
| 5D | 2900 | 3570～3854 | 6440～12880 | 15～22 | |
| 5.6D | 2900 | 4482～4805 | 9048～18095 | 30～45 | |
| 6.3D | 1450 | 1422～1500 | 6441～12882 | 7.5～11 | |
| 7.1D | 1450 | 1804～1942 | 9220～18439 | 11～18.5 | |
| 8D | 1450 | 2285～2462 | 13189～26378 | 18.5～30 | |
| 9D | 1450 | 2893～3099 | 18779～37558 | 37～55 | |
| 10D | 1450 | 3570～3854 | 25760～42933 | 55～90 | |
| 11.2D | 960～1450 | 1961～4835 | 23961～72381 | 30～160 | |
| 12.5D | 730～960 | 1412～2638 | 25329～66620 | 22～90 | |
| 14D | 730～960 | 1775～3305 | 35586～93596 | 45～160 | |
| 16D | 730～960 | 2314～4295 | 53120～139712 | 75～280 |
Product Features
1. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
2. It can not only reduce the pollution of the smoke on the environment, but also reduce the wear of the smoke on the fan, which is conducive to prolonging the life of the fan.
3. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
