| Place of Origin: | China |
| Brand Name: | SIMO BLOWER |
| Certification: | CE/ISO9001/ISO45001 |
| Model Number: | SIMO Blower 4-14 |

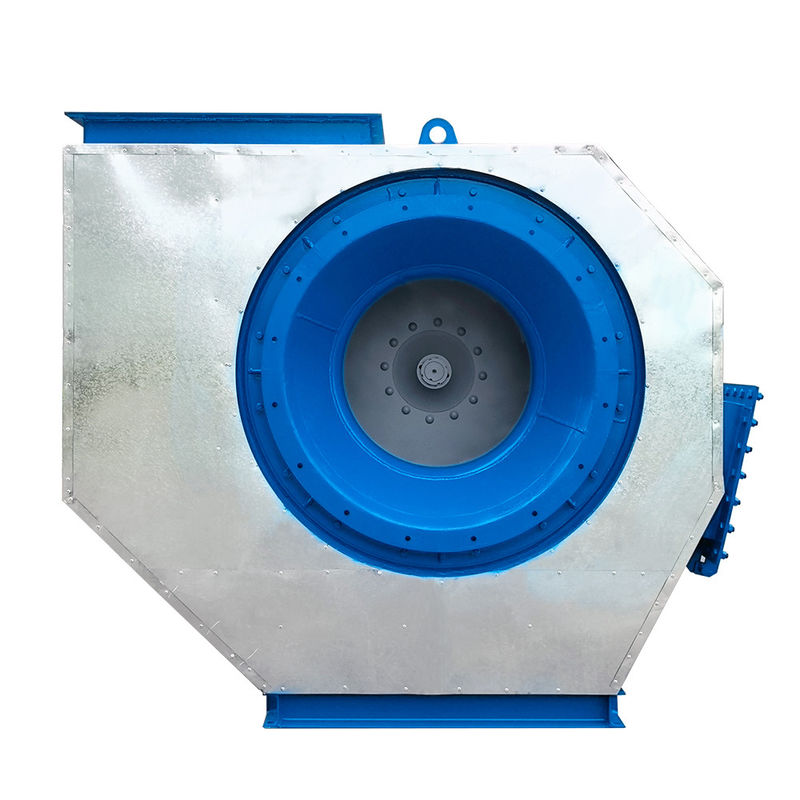

The centrifugal fan is equipped with ABB brand motor, it is the high power backward centrifugal fan. According your complex work environment, SIMO BLOWER can design the backward centrifugal fan for you. The backward centrifugal fan can be applied in steam power plant, and also can be used in:
♦ Metal smelting
Furnace coke production(Furnace coke oven), Electrolytic aluminium production line air purification system.
♦ Metal smelting
Blowing air of mineral powder sintering(Sintering machine), Smelting furnace and foundry furnace, Combustion of blast furnace, Blast furnace coal injection, Coal gas boosting and conveying.
♦ Gas and materials delivery
General air delivery, High-temperature air delivery, Combustible gas delivery, Corrosive gas delivery, Gas mixed with impurity delivery.
Delivery of coal powder, Particle material/ Powder material/ Fragment materials/Fiber materials.
| High Power Air supply of Industrial Cement rotary kilns centrifugal fan | |||
| Performance | Pressure range | 220 ~ 3143 | Pa |
| Air flow range | 3684~48797 | m3/h | |
| Impeller diameter | 600~1000 | mm | |
| Speed | 500 ~ 2240 | rpm | |
| Material | Backward centrifugal fan case | Q235, Q345, stainless steel | Design as special |
| Backward centrifugal fan shaft | 45# steel, Q304, SS304,SS316L | ||
| Backward centrifugal fan impeller | Q304, 12Cr1Mov,15Crmov, 15MnV | ||
| Medium | 10---120℃ | Dustiness<80 g/m3 | incombustible |
| Motor | Siemens, ABB, WN, SIMO, LA | IP 54,55,56 | 3 phase |
| Optional components |
System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank. |
||
| Noise Level | 50dB |
| Power Consumption | 100W |
| Keywords | Steel Mill Fan, Dust Collection Fans, coal mill fan |
| Speed Settings | 3 |
| Drive | Direct Connection |
| Electric Current Type | AC |
| Impeller Test | Ultrasonic Flaw Detection |
| Frequency | 50hz/60hz |
| Bearing Type | Rolling Bearing |
| Blade Number | 5 |
The Cement Complicate Centrifugal Fan is perfect for use in the cement industry, where it can be used in a variety of applications. One of the most common applications is in the production of cement, where it is used to ventilate the kiln and cool the clinker. It is also used in the cement mill, where it helps to reduce the temperature of the cement and improve the quality of the final product.
The Cement Complicate Centrifugal Fan is also suitable for use in other industries, such as steel mills. It is a process fan, which means that it is designed to handle high temperatures and harsh environments. The fan's impeller has undergone ultrasonic flaw detection, which ensures that it is free from any defects and can operate efficiently and safely.
The Cement Complicate Centrifugal Fan has a noise level of just 50dB, which makes it one of the quietest fans on the market. This makes it ideal for use in areas where noise levels need to be kept to a minimum, such as offices or residential areas.
In conclusion, if you are looking for a fan that is versatile, durable, and efficient, then look no further than the Cement Complicate Centrifugal Fan from SIMO BLOWER. This product is perfect for use in the cement industry, as well as other industries that require a high-performance fan with low noise levels.
The Cement Fan product technical support and services include:
Our technical support and services are designed to ensure that our Cement Fan product operates at peak performance and efficiency, and to minimize downtime and maintenance costs.
Q: What is the brand name of this cement fan?
A: The brand name of this cement fan is SIMO BLOWER.
Q: Where is this cement fan manufactured?
A: This cement fan is manufactured in China.
Q: What is the purpose of this cement fan?
A: This cement fan is designed to circulate air in cement plants to maintain optimal temperature and humidity levels.
Q: What is the power source for this cement fan?
A: This cement fan is powered by electricity.
Q: What is the warranty for this cement fan?
A: Warranty information is not included in these frequently asked questions. Please refer to the product documentation or contact the manufacturer for warranty information.
